Tutorial: ROOT Analysis Framework Basics

Overview

The ROOT analysis framework, developed by CERN, is a powerful tool for data analysis and visualization in high-energy physics and other scientific fields. In this tutorial, you'll learn the basics of using the ROOT framework, including working with histograms, trees, and graphs, as well as reading and writing data files.

Tutorial Objectives

This tutorial is designed to:

• Provide a high-level introduction to the ROOT analysis framework.
• Enable quick hands-on experience with ROOT through practical analysis tasks that have been previously conducted by our group.

Limitations

Please note that this tutorial does not aim to:

• Give an indepth understanding of the full functionality of ROOT.
• Explain the intricate details of how everything works.

The primary objective of this tutorial is to equip beginners with the necessary knowledge to start conducting relevant analyses using the ROOT framework.

Other Resources

There are many other great resources for learning ROOT. We recommend the following:

• ROOT Primer (opens in a new tab)
• ROOT Manual (opens in a new tab)
• ROOT Tutorials (opens in a new tab)
• ROOT Reference Guide (opens in a new tab)
• ROOT Forum (opens in a new tab)

These will also be discused more at the end of this tutorial.

Prerequisites

It is strongly recommended that you have worked throught the Terminal tutorial before starting this one. This tutorial will assume that you have a basic understanding of the terminal and how to use it.

Download and Installation

Before you can start using ROOT, you'll need to install it on your computer. Follow the installation instructions on the ROOT website for your operating system.

• ROOT Install page (opens in a new tab)

Mac

If you have a Mac, we strongly recommend using Homebrew. If you don't have Homebrew installed, follow the instructions on the Homebrew website (opens in a new tab). Once Homebrew is installed, you can install ROOT with the following command:

brew install root

This is easy and and requires no additional configuration.

Conda

Using conda is also a good choice. To download conda go to the conda website (opens in a new tab). Once conda is installed, you can install ROOT with the following command:

$ conda config --set channel_priority strict
$ conda create -c conda-forge --name <my-environment> root
$ conda activate <my-environment>

We do not recommend using the binaries provided by the ROOT website unless you have experience building your own software.

Windows/WSL/Linux

If you are using Windows, we recommend using the Windows Subsystem for Linux (WSL) to install ROOT. You can follow the instructions on the ROOT website for installing ROOT on Linux. You will need to install the latest version of Ubuntu from the Microsoft Store first.

If you have Linux just skip to installing conda.

For using and installing WSL go here (opens in a new tab). Follow the instructions they will have you first download the the right drivers for your Ubuntu version. Then update WSl in powershell. Launch the ubuntu app as an admin then update with 'sudo apt update' and 'sudo apt upgrade'. Then install the x11-apps.

Now you want to install conda from the ubuntu terminal. Here is the website instructions page for conda (opens in a new tab). Use the instructions at the bottom for installing on linux.

Once conda is installed you can install ROOT with the following command:

$ conda config --set channel_priority strict
$ conda create -c conda-forge --name <my-environment> root
$ conda activate <my-environment>

Replace <my-environment> with the name you want for your enviroment. To use root now when you open your ubuntu terminal type:

$ conda activate <my-environment>
$ root

Tutorial

This tutorial will cover how to analyze data from a test beam of the Showermax detector. This will introduce you to some core skills you will use repeatedly. Namely you will need to:

• Open a root file
• Read a tree from the file
• Fill a histogram from the data in the tree
• Plot the histogram
• Shift the data to the pedestal
• And fit the remaining data

First in part 1 we will do some of the above things from the terminal and root command line. Then in part 2 we will make a C++ macro to do the same thing. In general you will likely use macros the most often.

Part 1: Using the ROOT command line

The root command line with TBrowser is a good way to quickly look at root files and get a feel for the data. The TBrowser is a GUI that allows you to navigate through the contents of a root file. And can be good for quickly looking at the data. However, it is limited when doing a large amount of analysis. For that macros are better use.

In this part we will first open a ROOT file using the TBrowser to see what the files look like. Then we will use the ROOT command line to read the data from the file, plot it, and fit it.

Pre-requisites

Before you begin you will need to get the root file from the daq3 server, and save it to your computer. This file contains the data from a test beam of the Showermax detector.

You will need to use scp exactly like you did in the terminal tutorial here.

The file is located at:

    scp daq@daq3.physics.isu.edu:/home/daq/root_tutorial/showermax.root [local_directory_path]

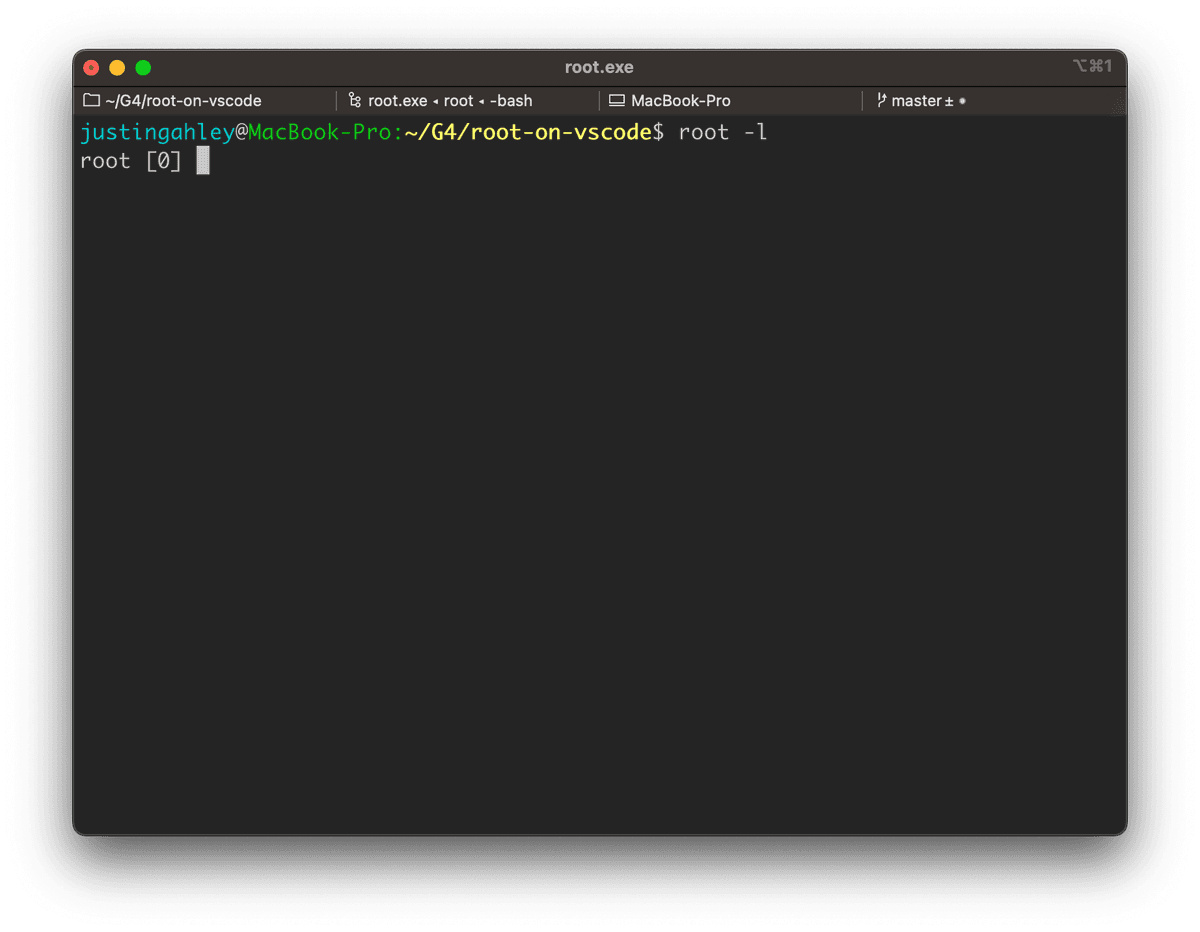

Then make sure you have successfully installed ROOT. You can check this by opening a terminal and typing:

root -l

Opening a ROOT file With TBrowser

In your terminal change to the directory where you saved the ROOT file. Then open the root command line:

root -l

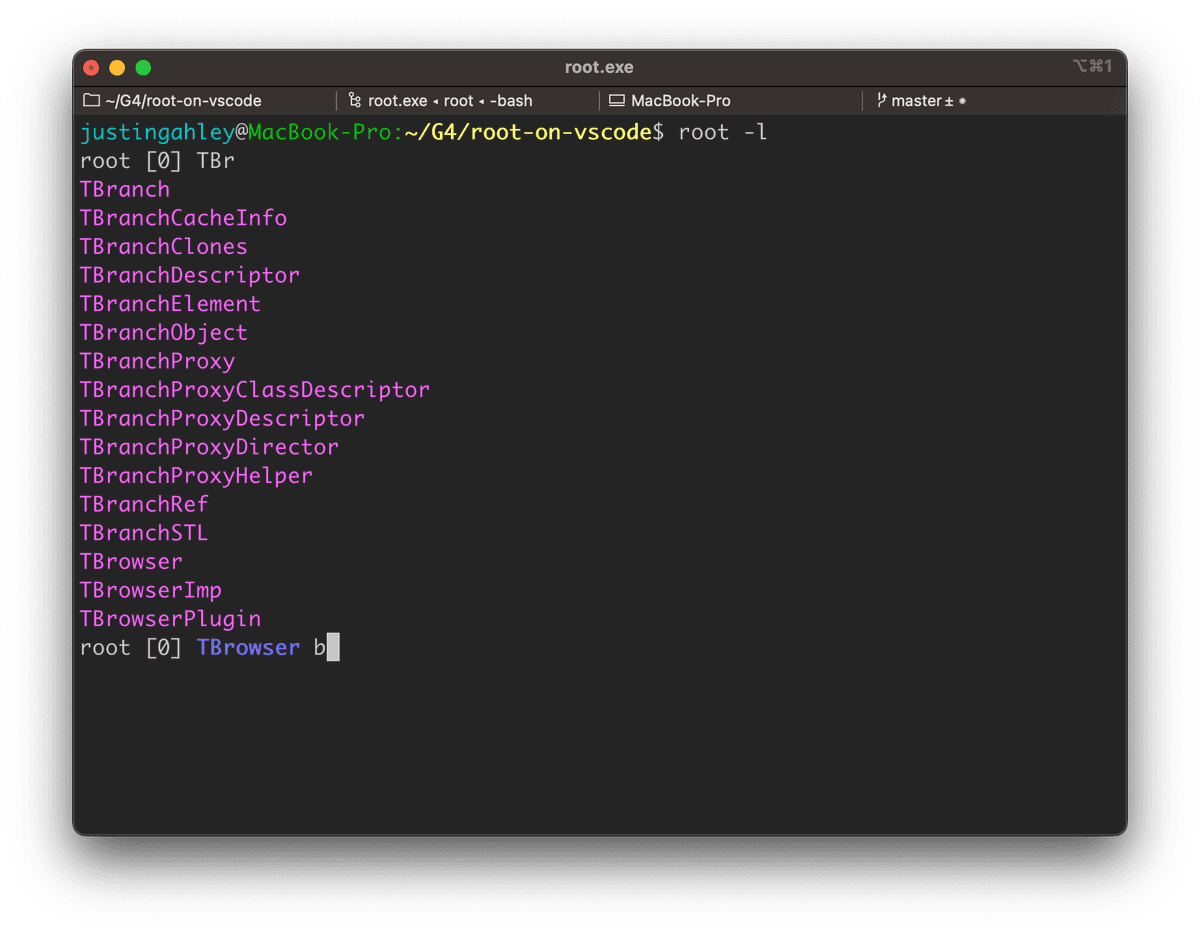

Now we will open a TBrowser, which you can use to look at root files. This is a GUI that allows you to navigate through the contents of a root file. To open TBrowser type:

TBrowser b

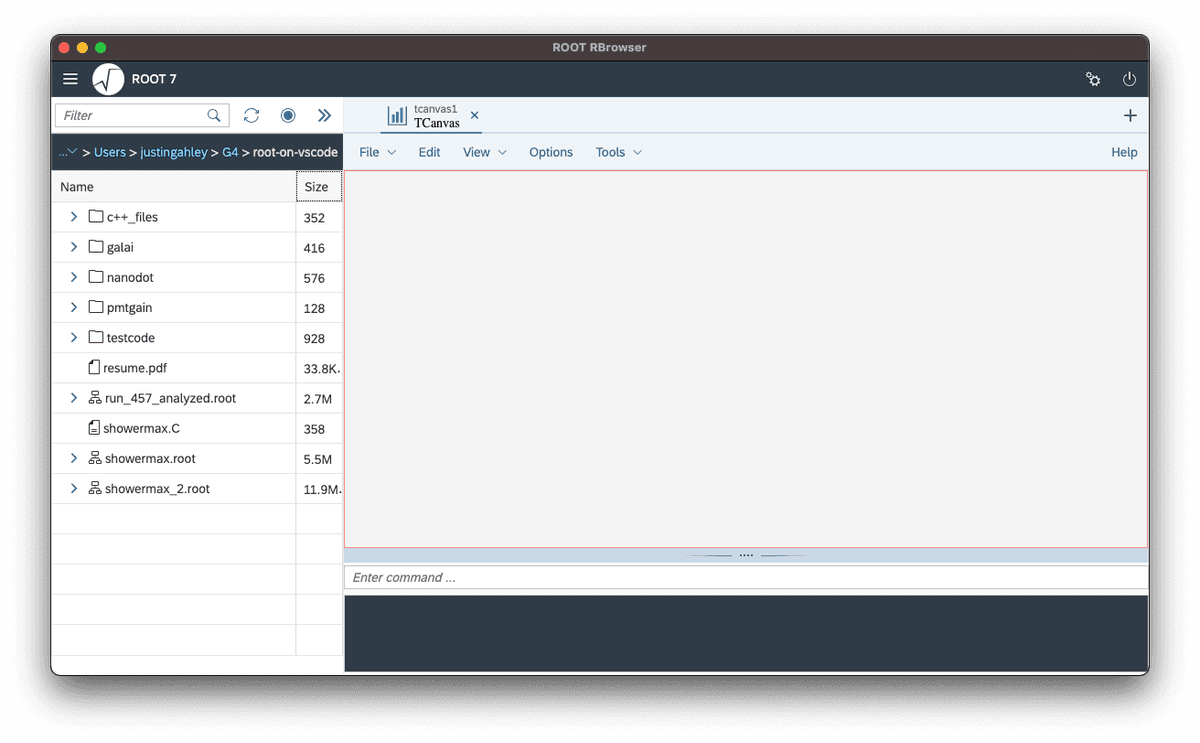

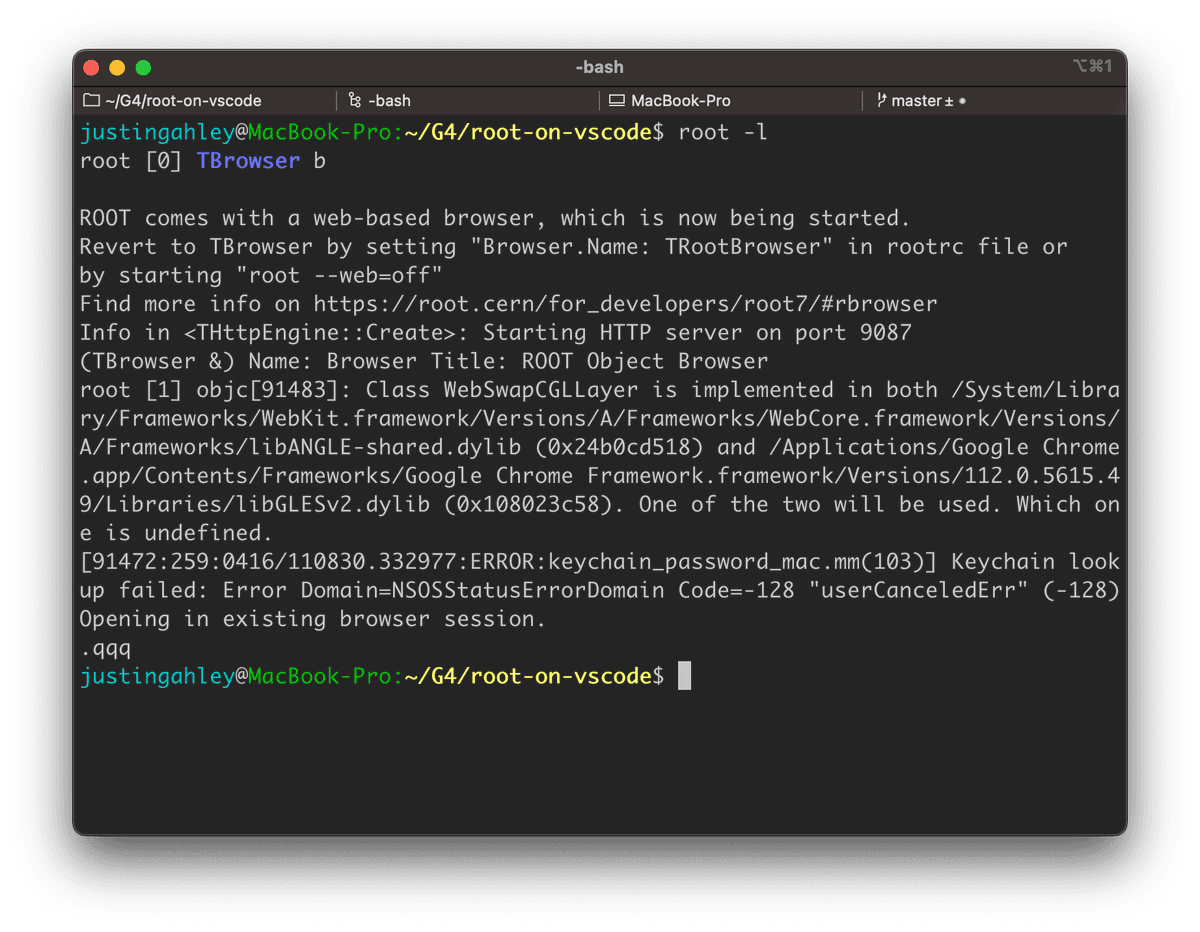

This will open a ROOT GUI (graphical user interface) window in your browser.

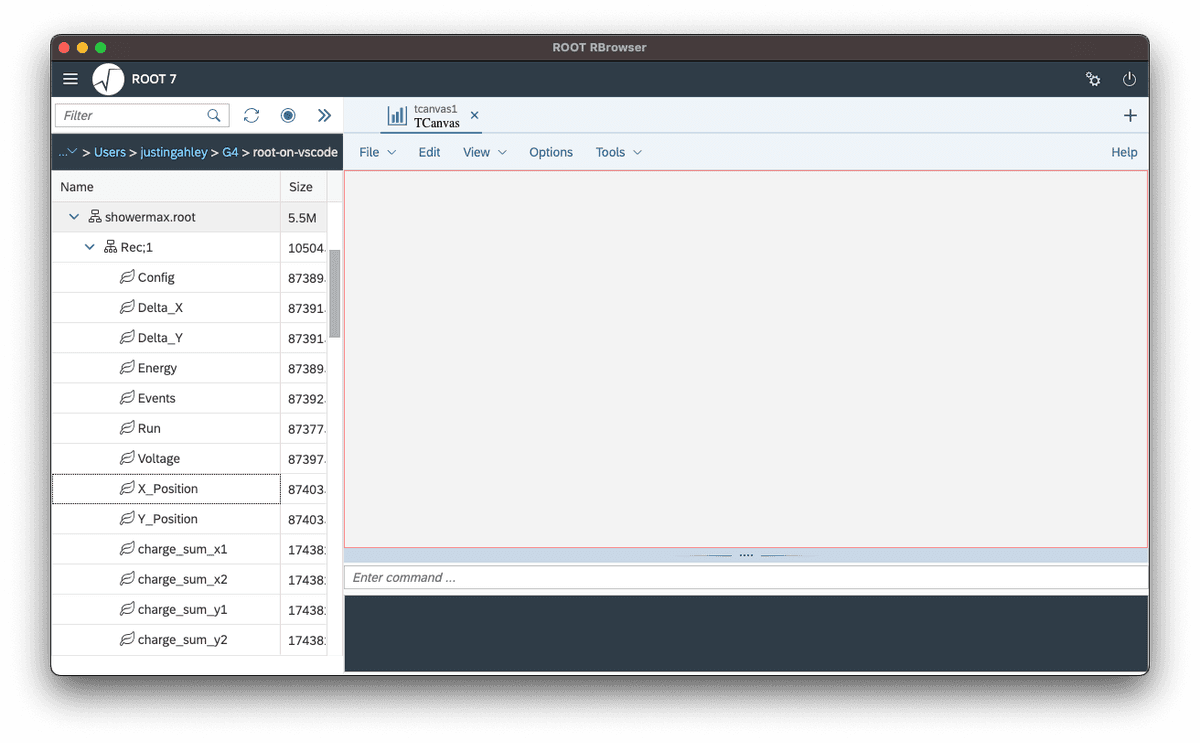

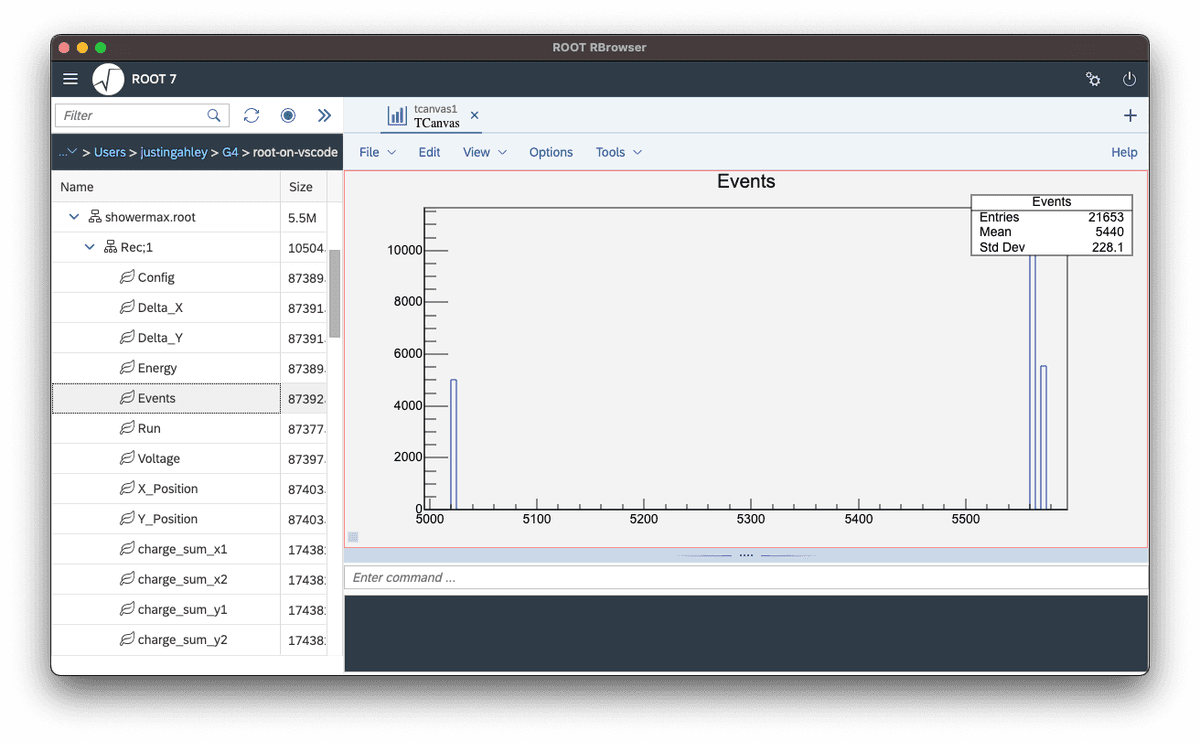

Find the showermax.root file in the TBrowser and click on it. You will see a drop down menu click on the Rec 'tree.'' You will see a list of 'branches' in the tree. These are different variables that were recorded during the test beam.

You can click on any of these branches to see the data that was recorded. Go ahead and look around the contents of the file click on a few different branchs and you will see that they will display on your screen as a histogram.

Now click on the "det1_qdc_hr" branch this is the branch we will be using in this tutorial.

Now you can seen what the distribution looks like, go ahead and close the TBrowser window. When you are back in the root command line enter this:

.qqq

This will quit the root command line.

Opening a ROOT file With the Command Line

Make sure that you are in the directory where you saved the ROOT file. Lets open the root command line again:

root -l

Now we will open the ROOT file. To do this we will use the TFile class. This class allows you to open and close ROOT files. To open the file type:

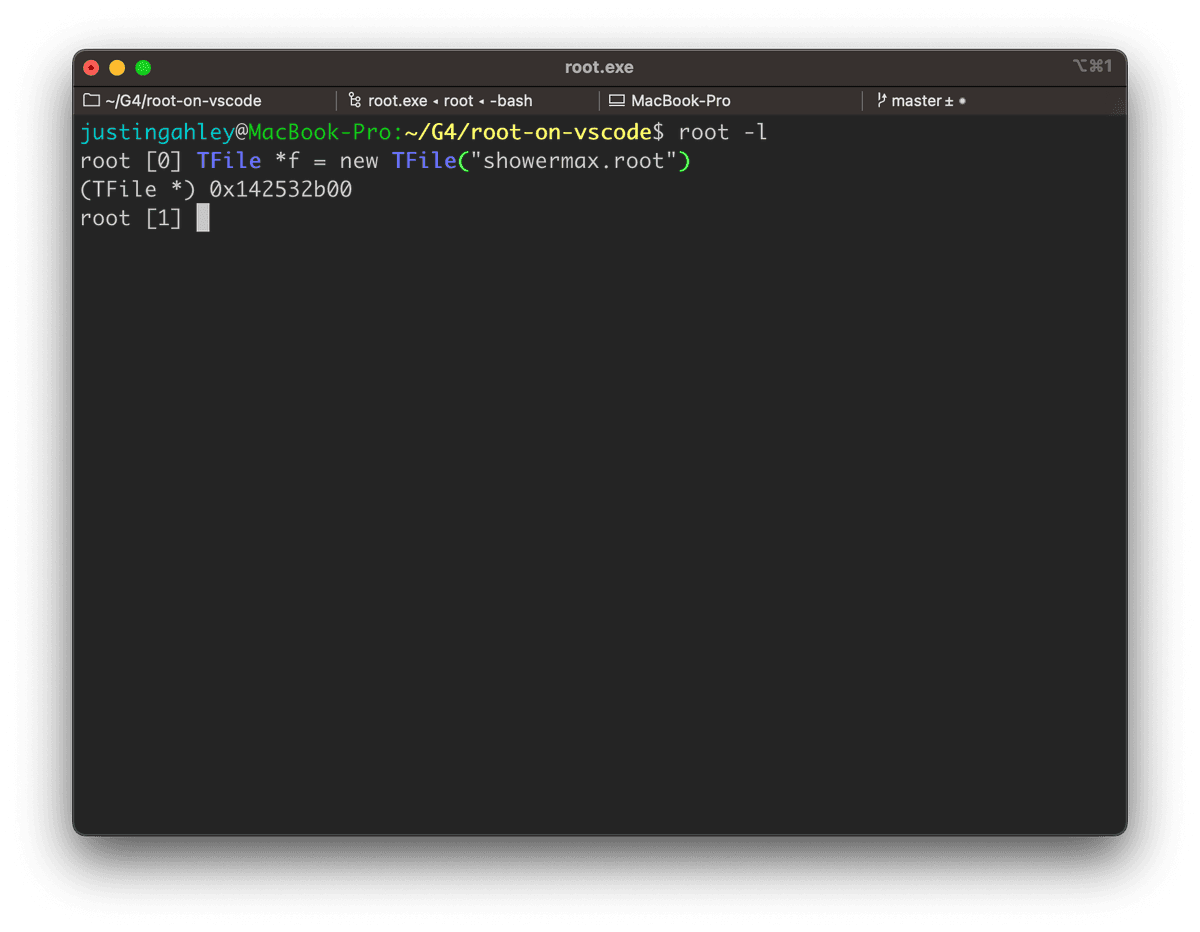

TFile *f = new TFile("showermax.root")

This will create a pointer (you don't need to worry about what that is) to the file. You can check that the file is open by typing:

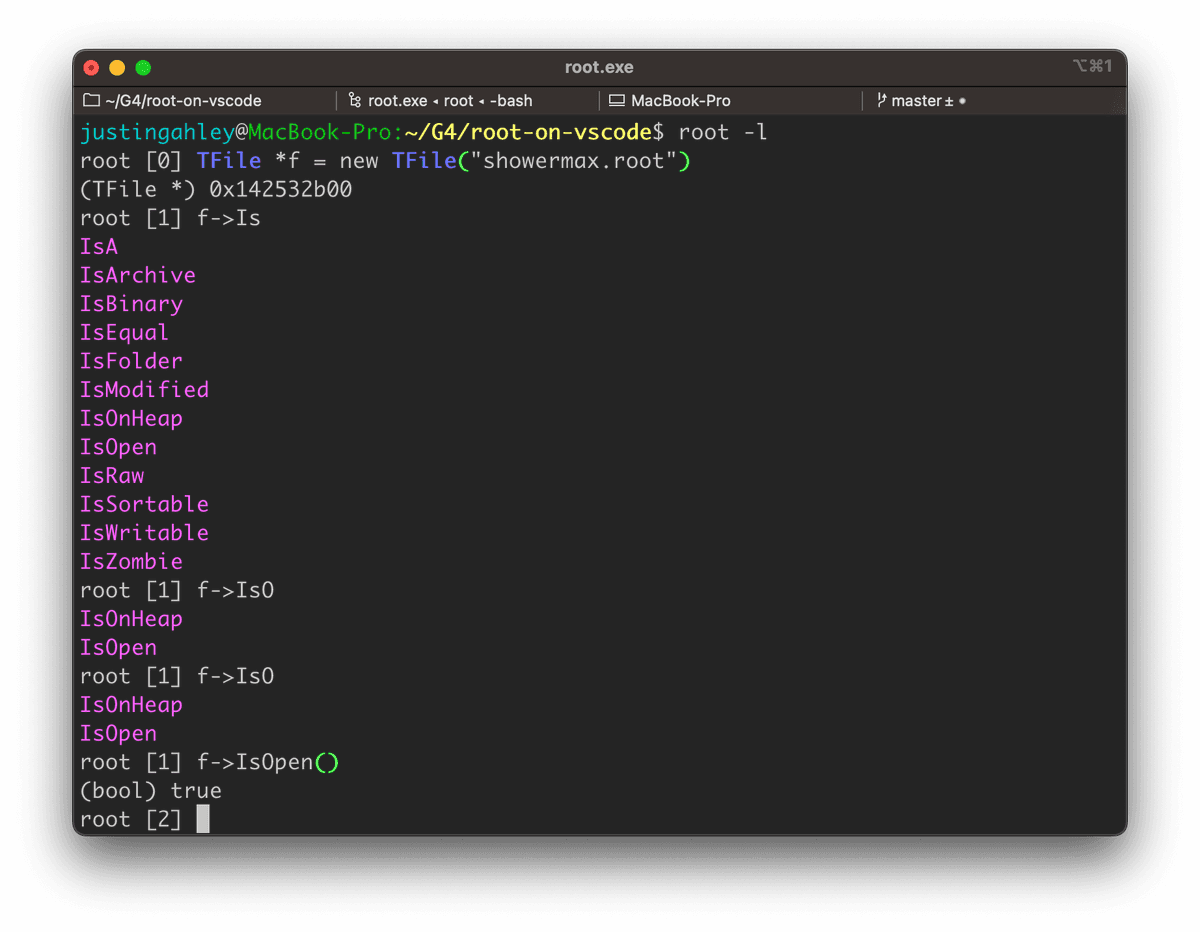

f->IsOpen()

You will get a true or false response. If you get false, check that you are in the correct directory and that you spelled the file name correctly.

Now we want to open the tree in the file. To do this we will use the TTree class. This class allows you to read and write trees. To open the tree type:

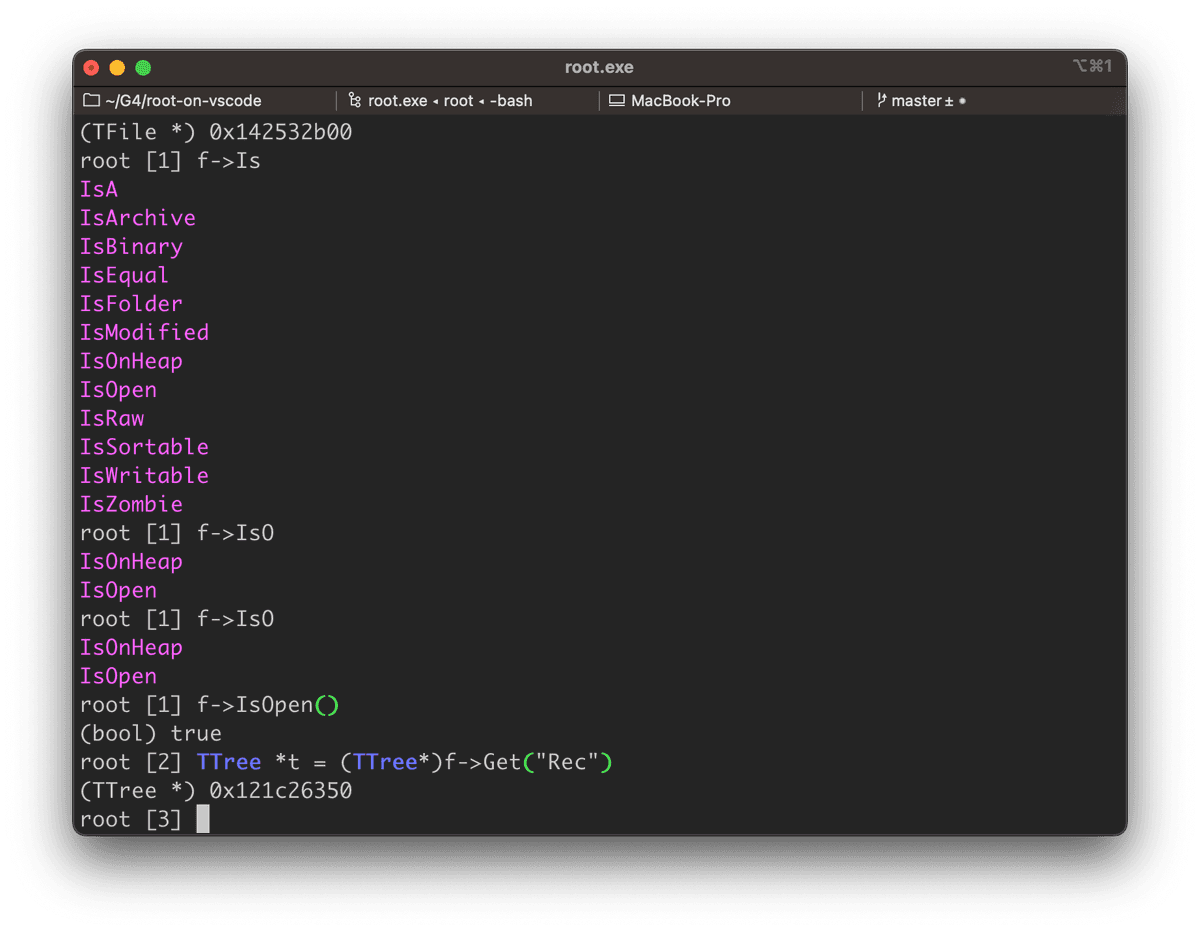

TTree *t = (TTree*)f->Get("Rec")

Plotting the Data

Ok now we want to analyze the data that is stored in the 'det1_qdc_hr' from earlier. To do this we will use the Draw() method of the TTree class. This method will draw a histogram of the data in the tree. To draw the histogram type:

t->Draw("det1_qdc_hr")

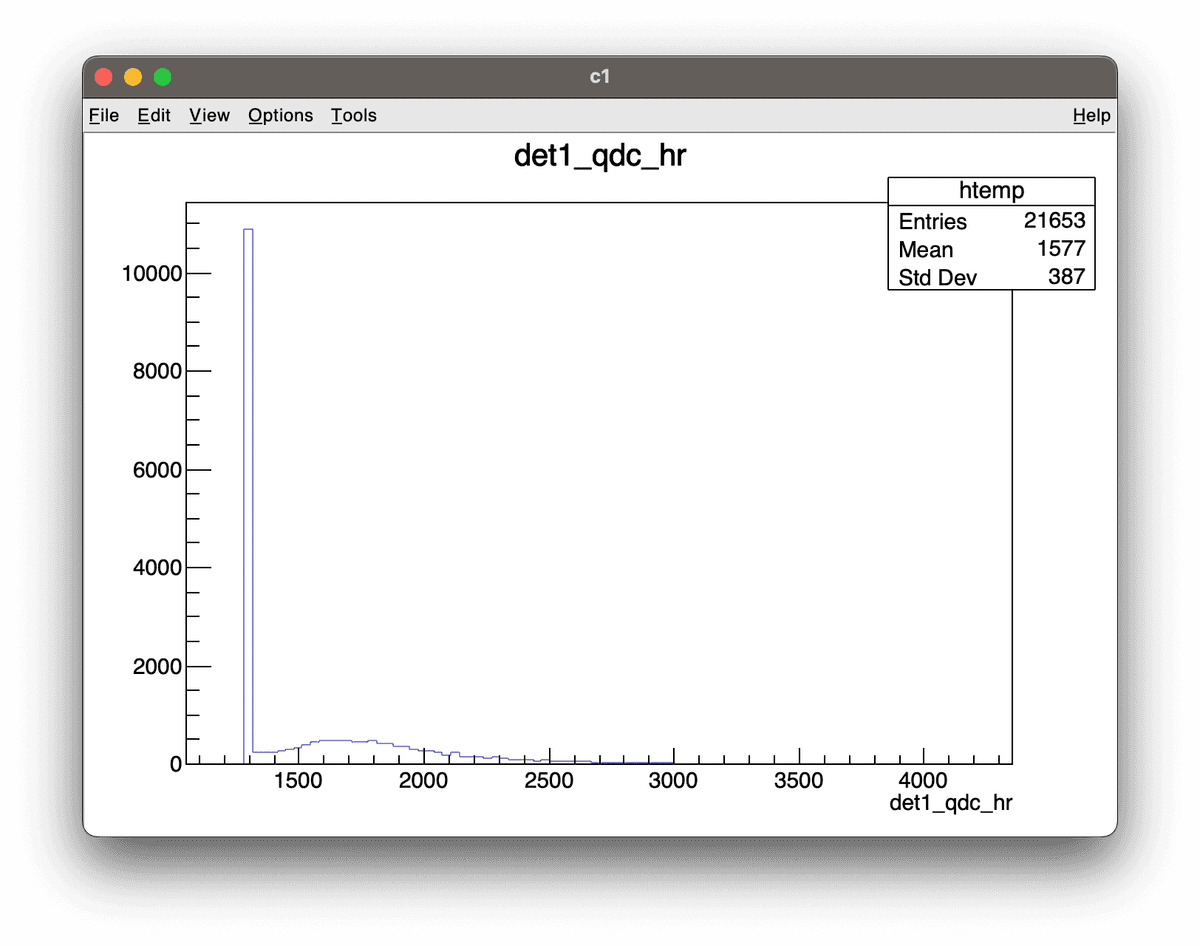

Here we are telling the Draw() method to draw the data in the 'det1_qdc_hr' branch. This will be plotted in a new window as a histogram by defualt.

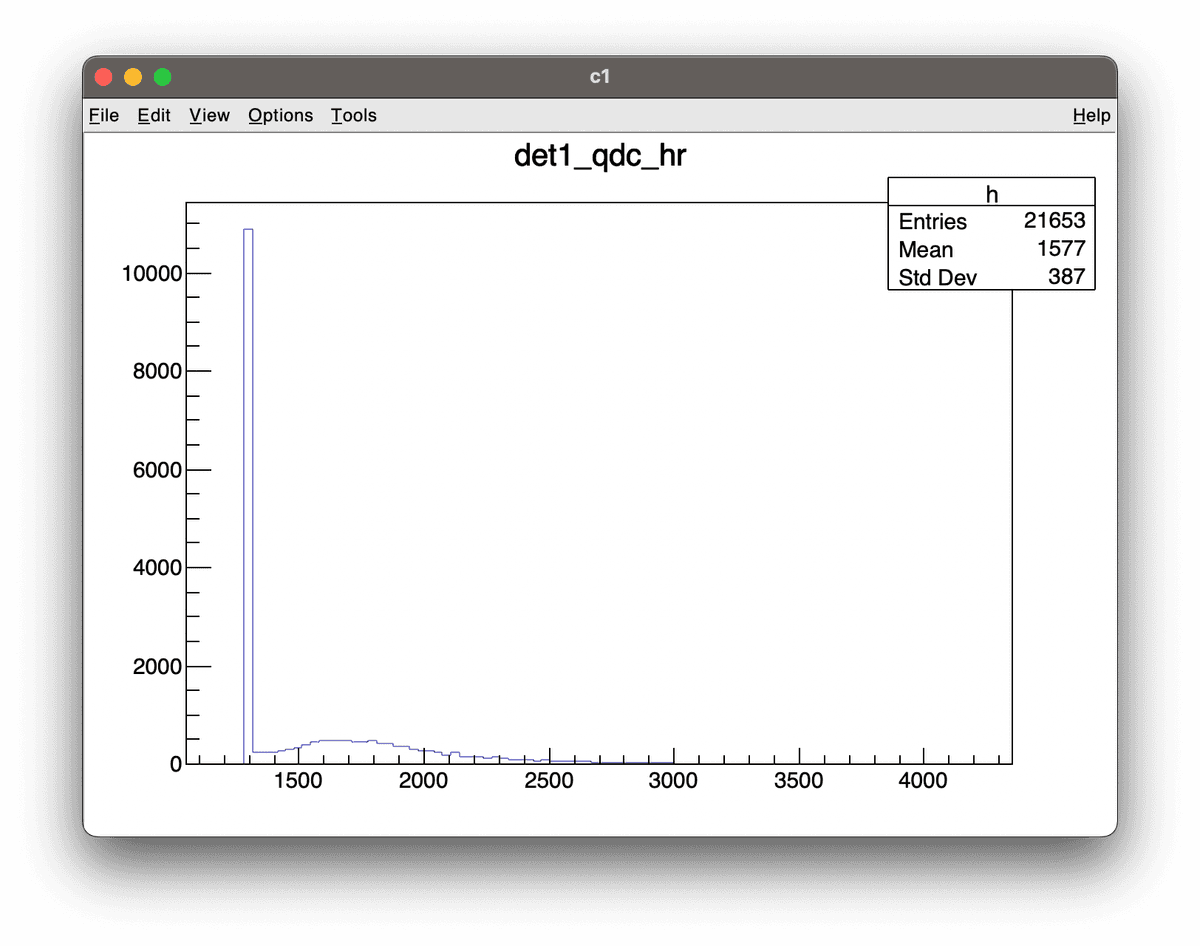

That's it! You have plotted the data from the ROOT file. If you just want to look at the data in a file this is all you need. But usaully we want to do some analysis. So let's fit the data to see how we can do this.

Fitting the Data

There a a few ways to do this. The simplest way to do this is to use the GUI and make a simple fit. The GUI has options to make any chagnes you want, but is best for quick and simple fits.

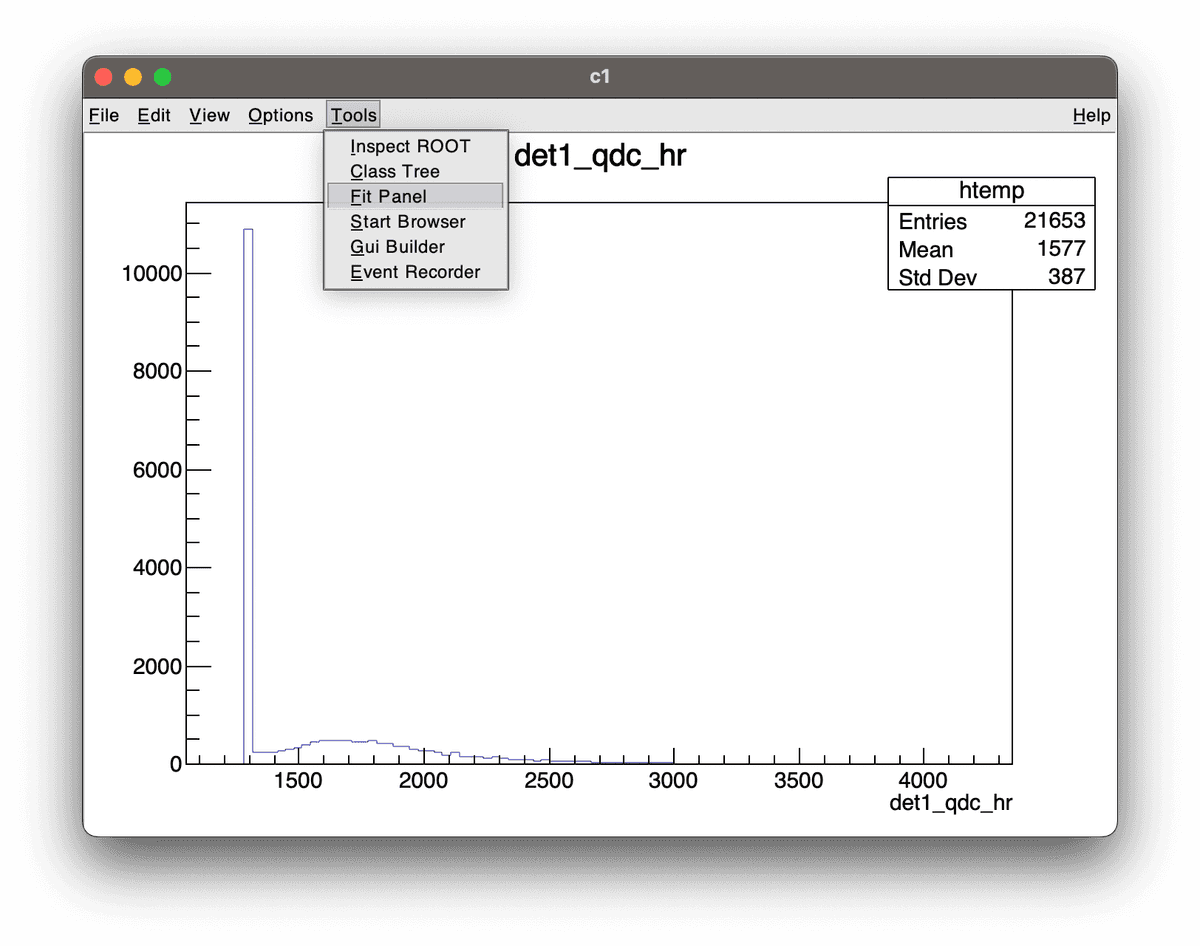

First you want to click on the 'Tools' drop down menu and select 'Fit Panel.'

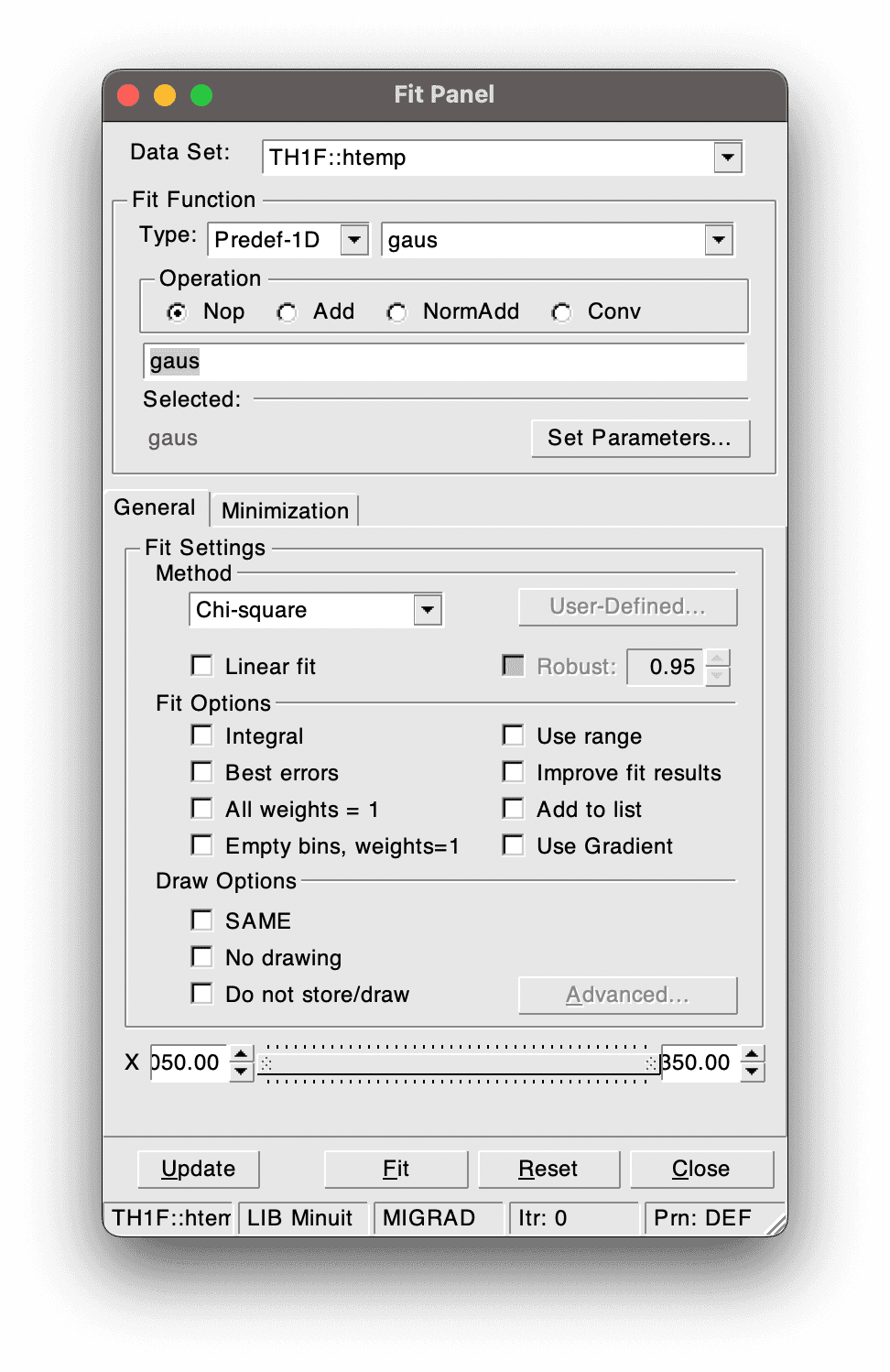

The Fit Panel will open in a new window. It should look like this.

There are a lot of options, we are going to ignore most of those for now. We just want quick and simple fit. The guassian fit is already select3ed by default. Let's try that. Click on the 'Fit' button at the bottom in the middle. You should see something like this.

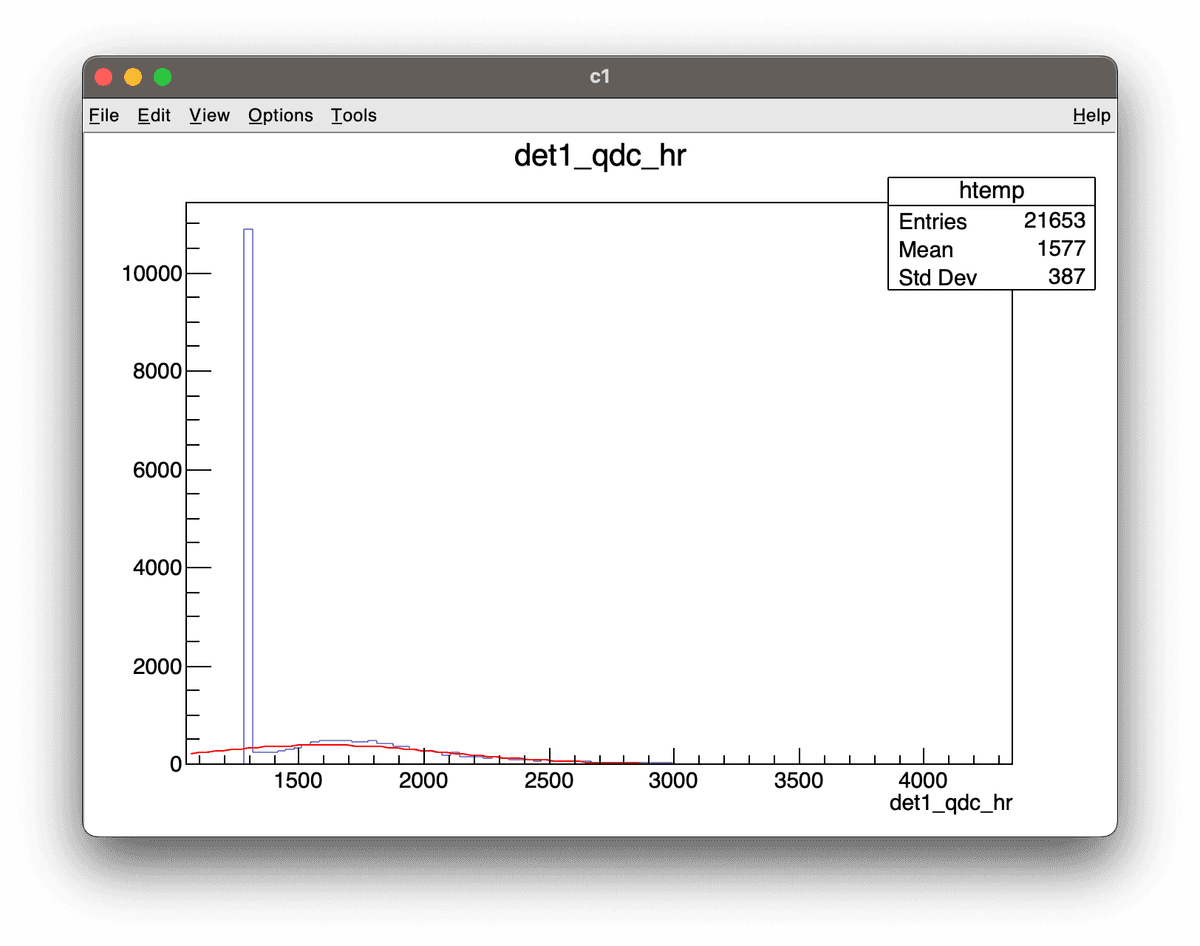

This is not a great fit obviously. In fact there are a couple of steps that we didn't go through. The main problem is there is a very tall peak at the begining. This is called the pedestal, and is a feature of the ADC, it's actually not apart of our data. We need to remove this before we can get our fit.

At this point we could do all of these things from the root command line. However it can get messy and confusing pretty quickly, we find the root command line to be useful for quick looks. When you have several things you want to accomplish your best option is to use a macro. There is a huge benifit to using macros, mainly they are repeatable! Do it once and you have it forever.

Part 2: Using Macros

The second part of this tutorial will be about making and using a c++ macro. There are other programming languages you can use to make a macro, but c++ is the most common in Dr. McNulty's lab.

Creating a Macro

To do this we think it is best to start from scratch and make a completely new macro. So let's start by making a new file. So, open up your favorite text editor. We will be using Visual Studio Code (opens in a new tab) for this tutorial. And make a new file. We will call it 'showermax.C' and save it in the same directory as the ROOT file. The name is important, it has to end in '.C' for it to be a c++ macro.

Now we need to add some code to the file. The first thing we need to do is include the ROOT libraries. To do this we will use the #include command. This command tells the compiler to include the ROOT libraries we will use. To do this enter the following code into the file at the top:

#include "TFile.h"
#include "TTree.h"
#include "TH1.h"
#include "TCanvas.h"
#include "TStyle.h"
#include "TMath.h"
#include "TF1.h"

Now this macro is based on c++, so all of our code will be contained in a function. The function will be a void function, which means it will not return anything. To make a function we will use the void command. To make a function we will use the following syntax:

void function_name()
{
    //code
}

Our function will be named 'showermax.' Thisn name has to be the same as the name of the file for ROOT to read it correctly. Our function will look like this:

void showermax()
{
    //code
}

Now we want to add similar code that we used on the root command line. We will make a canvas with TCanvas. And we want to open the file and the tree. To do this we will use the TFile class. This class allows you to open and create ROOT files. To open the file type:

TCanvas *c1 = new TCanvas("c1","c1",800,600);

TFile *f = new TFile("showermax.root");
TTree *t = (TTree*)f->Get("Rec");

One key difference here is the addition of the semi-colon (;) at the end of each line of code. This is required for c++.

So far our file looks like this:

#include "TFile.h"
#include "TTree.h"
#include "TH1.h"
#include "TCanvas.h"
#include "TStyle.h"
#include "TMath.h"
#include "TF1.h"

void showermax()
{
    TCanvas *c1 = new TCanvas("c1","c1",800,600);

    TFile *f = new TFile("showermax.root");
    TTree *t = (TTree*)f->Get("Rec");
}

Lets stop editing here and check to make sure everything is working. To do this we will run this macro from the terminal.

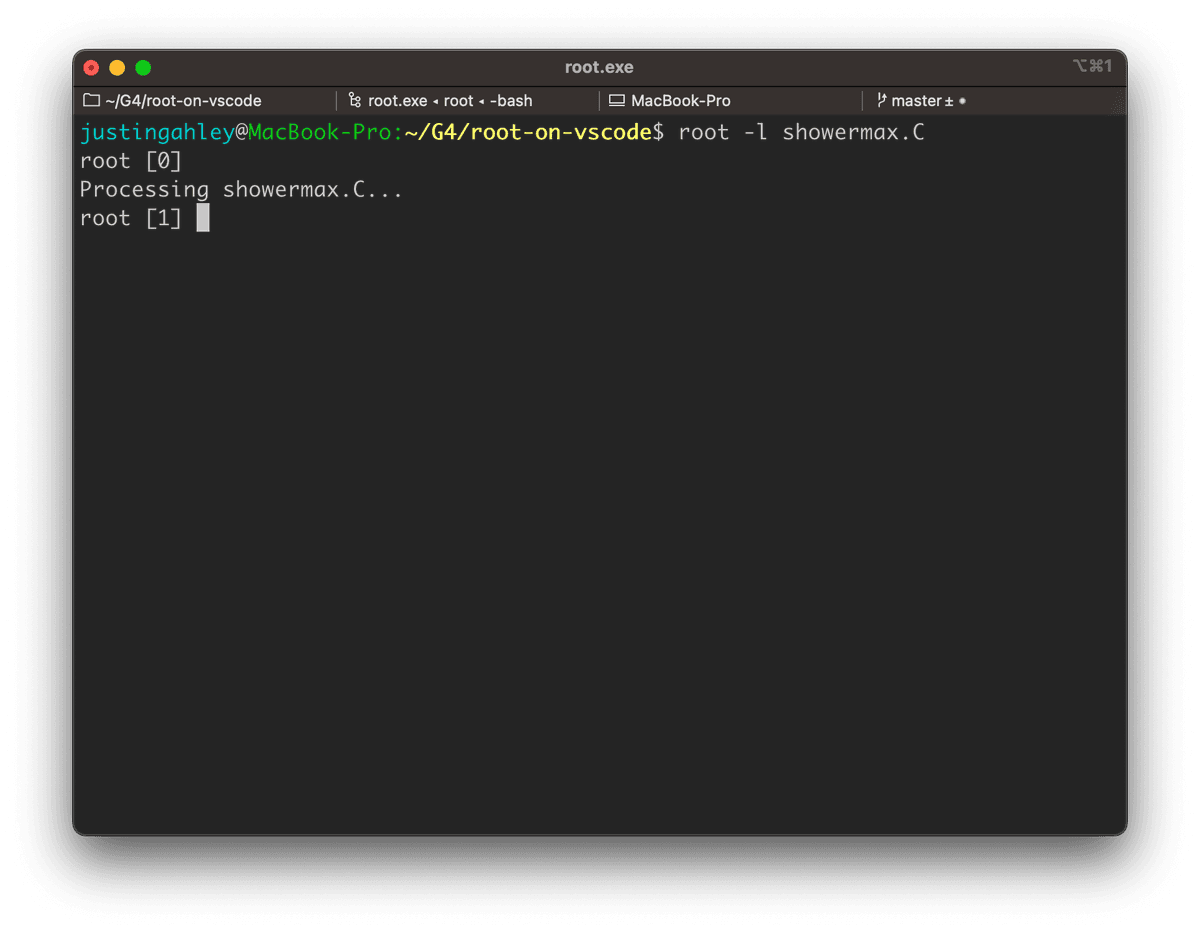

root -l showermax.C

And nothing! Good because we haven't asked it to draw anything yet but now we know the macro is working.

Drawing the Data

Let's add our data into an empty histogram. To do this we will use the TH1F class. This class allows you to make a one dimensional histogram.

TH1F *h;

This is just a null pointer to a histogram. We will fill it using the draw function we used earlier.

t->Draw("det1_qdc_hr>>h");

Now lets take a look at our handy work. First enter the .qqq in the root command line. And lets run the macro again. You can press the up arrow on your keyboard to get the last command you entered. This will save you a lot of typing.

root -l showermax.C

Alright good so far!

Shifting to the Pedestal

We want to shift the data to the true 'zero' point. The data we have is given in 'channels' from an ADC or QDC. These represent the charge that is being detected. The equipment has a baseline channel that we want to correct for by shifting the data over. The pedestal is the first very tall peak at the begining of the histogram. And We want to be consistant in the method we use. We may have hundreds or thousands of these to look through in a real experiment, and we don't want 'eye-ball' this correection every time.

Adding Cuts

Before we move on we will add some 'cuts.' We won't explain much about this but to state that this will cut out other unwanted data before we get to the pedestal. We can do this very simply by adding a cut to the draw function. To do this we will add in the parameter for cut's in the draw function. Let's change the line of code that draws the data to the following:

t->Draw("det1_qdc_hr>>h","isGoldenTrack&&!isNoisy");

We will add a few more cuts later on as well.

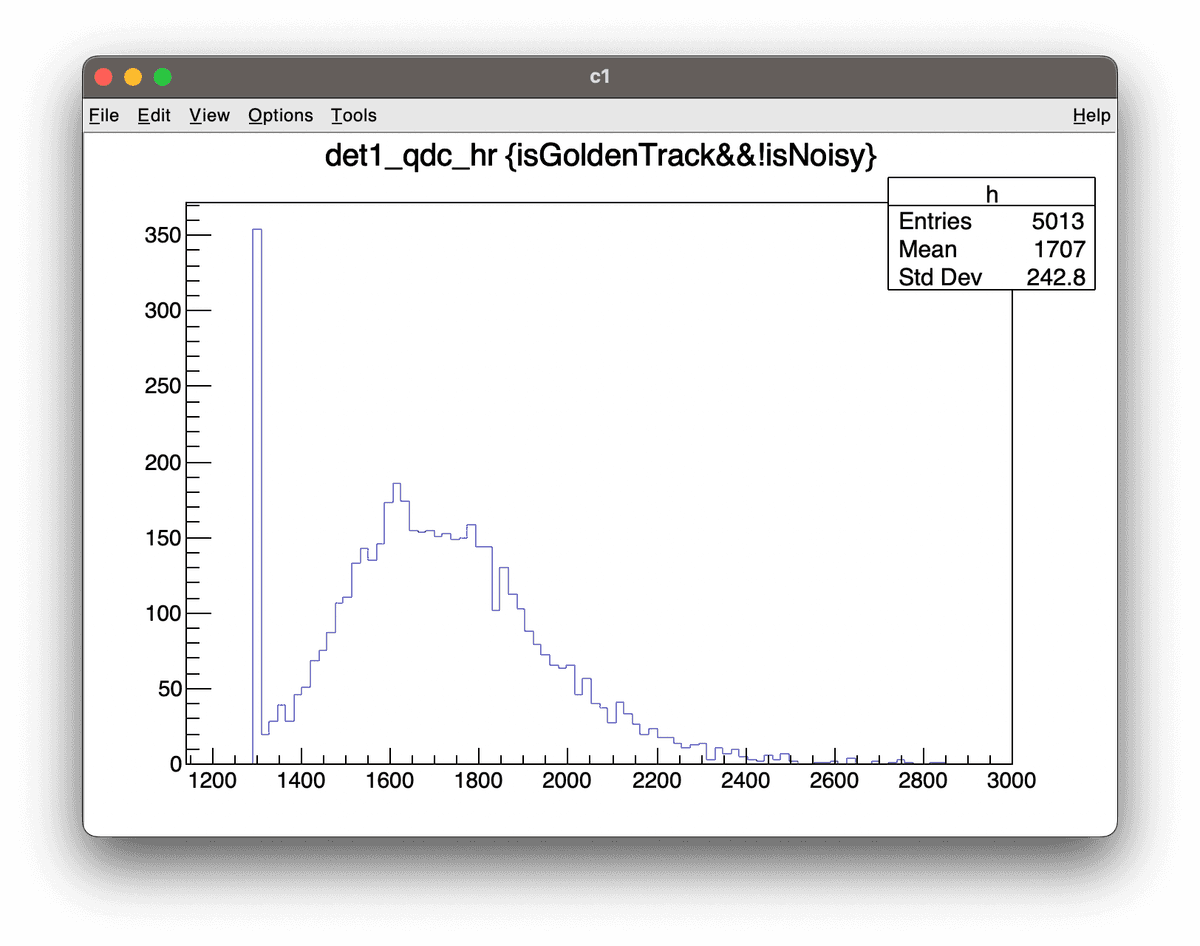

Type .qqq in the root command line and run the macro again and make sure everything is working.

root -l showermax.C

Still Working! Great!

For this example we will go back to using the GUI. In the GUI screen if you grab the bottom of an axis you can select a section to zoom in too. Like this:

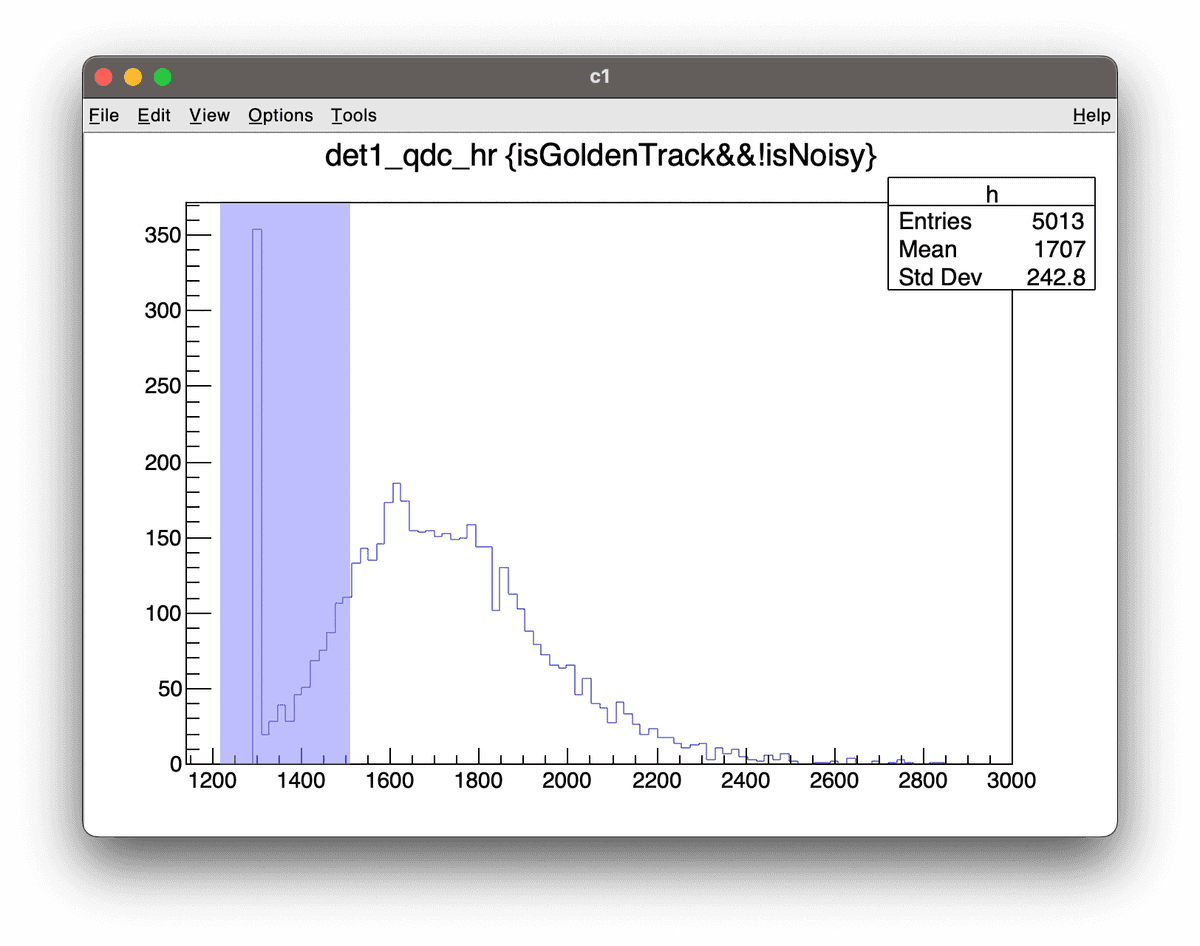

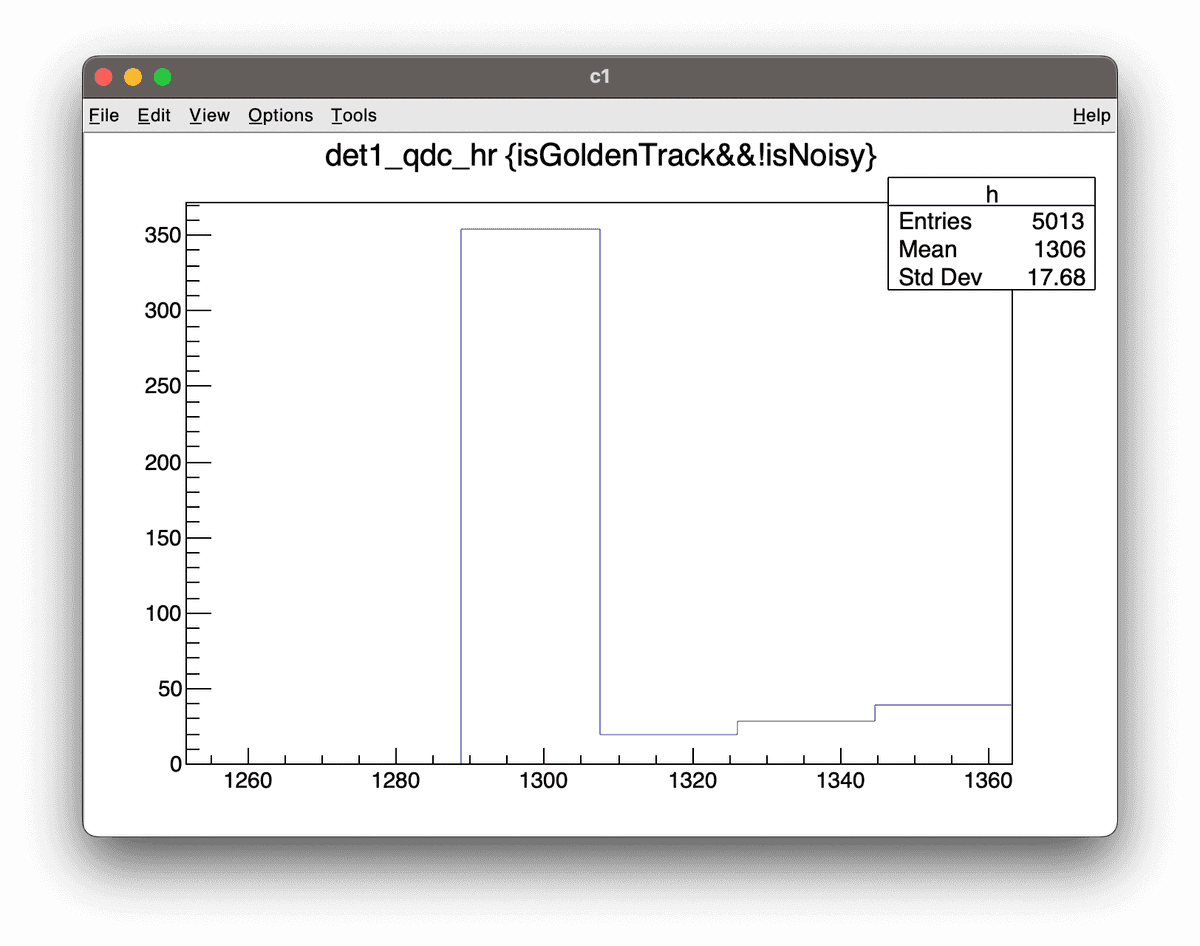

You can see we have zoomed in on the pedestal region. Now we will make a fit with the fit panel like we did before. Go to the Tools drop down menu and select Fit Panel just like before, then press the Fit button. (It is already set to the gaussian fit we want by default). We will use this to get a mean value for the pedestal.

Now you should have something like this.

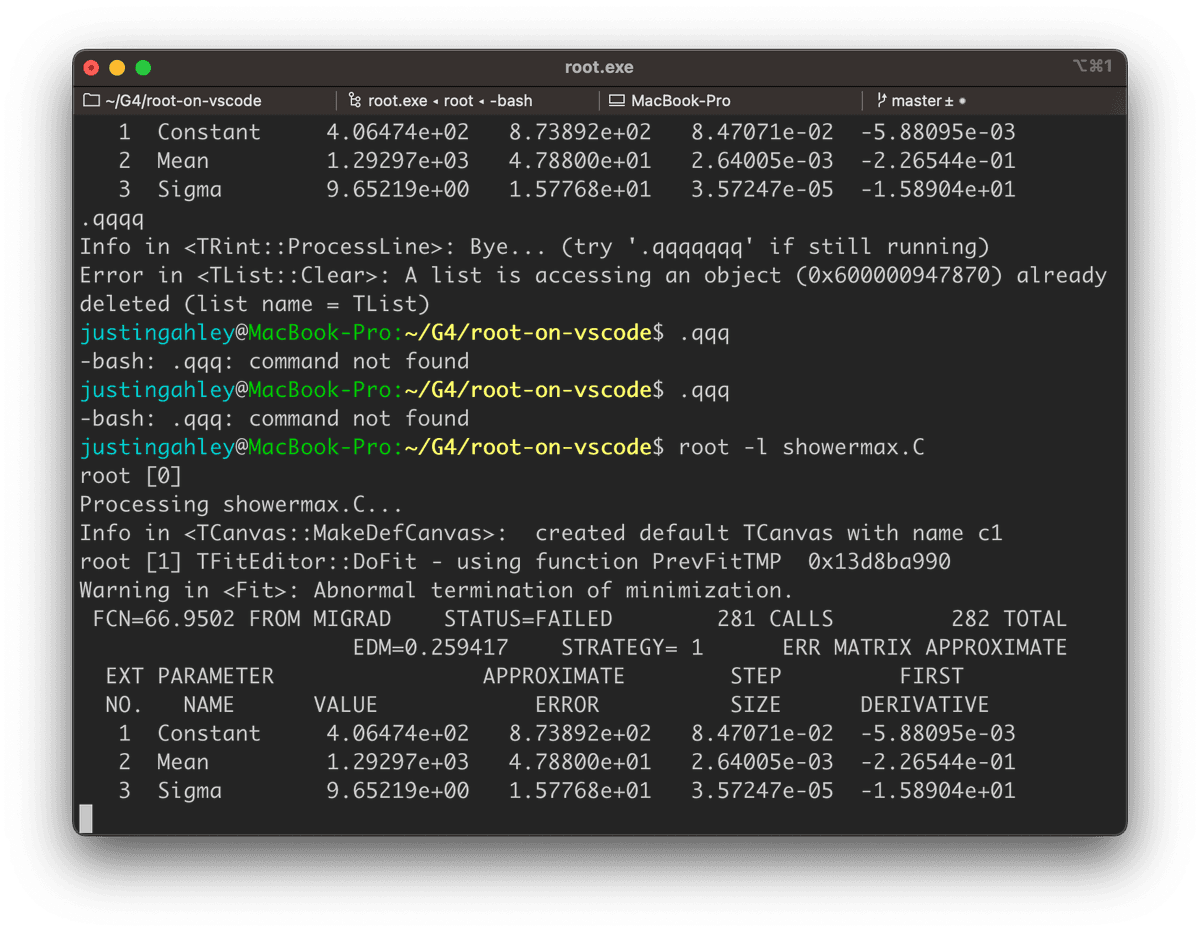

Now look at your terminal window the fit results should be printed there. We will use these values to cut out the pedestal.

We want the mean value so we can shift the data. In practice you would hard code this into your macro but for now this is simpler.

Adding Cuts to the Macro

Our mean value is about 1293 this is how much we want to shift our data over by to give us our correct starting point. We are also going to add a few more cut's that weren't included earlier. These extra cut's have to do with the location of the events measured.

t->Draw("det1_qdc_hr - 1293 >>h","isGoldenTrack&&!isNoisy&&(det1_y>8&&det1_y<18)&&(det1_x>1&&det1_x<25)");

Make sure to use .qqq to axit the GUI and run the macro again.

root -l showermax.C

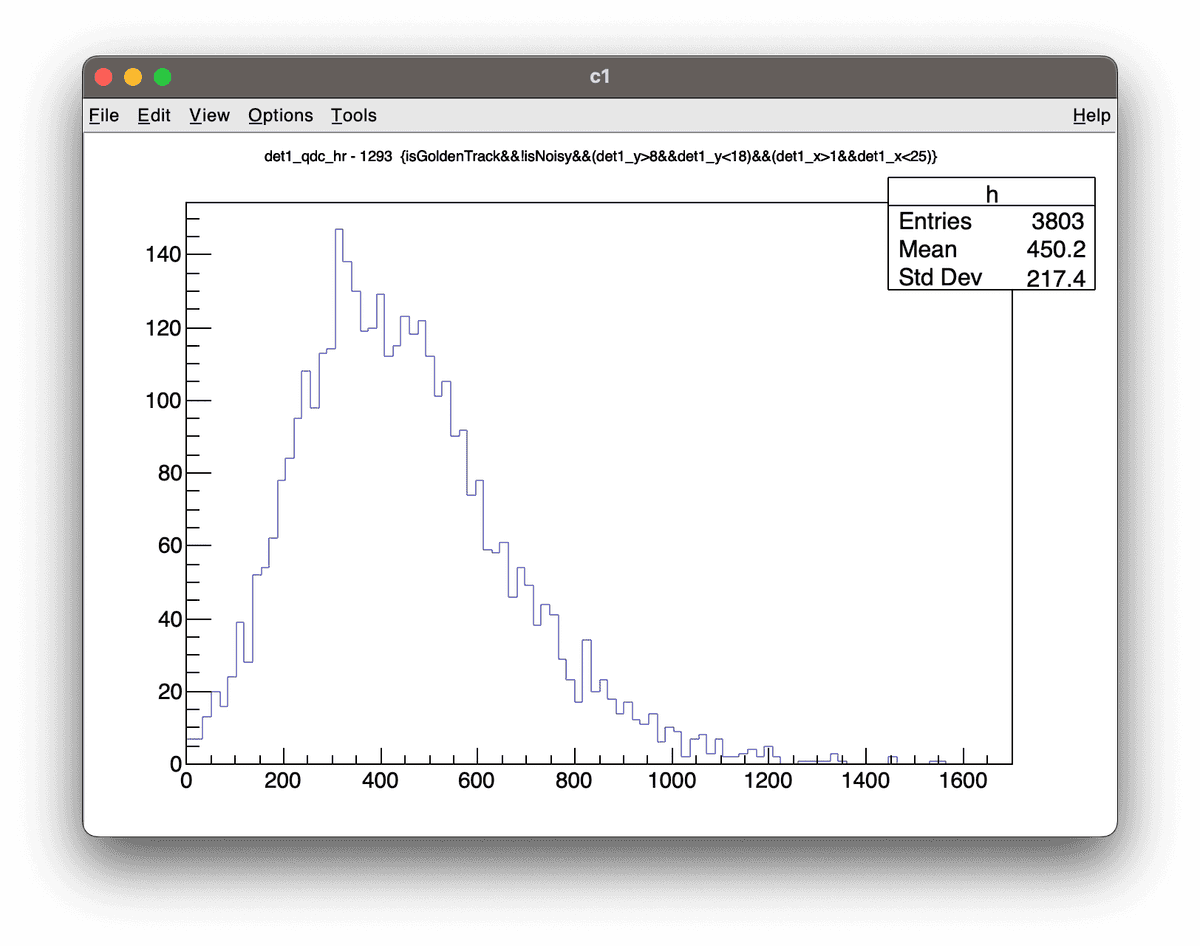

Here is our new results.

Great!

Now we have shifted the data to the correct starting point. We can see the pedestal is at zero. We will now convert the ADC channels into photoelectrons.

Converting to Photoelectrons

To do this we will scale our channels by the gain of the detector, and the charge of an electron. So, let'c change the draw function again.

t->Draw("(det1_qdc_hr - 1293)*1.378 >>h","isGoldenTrack&&!isNoisy&&(det1_y>8&&det1_y<18)&&(det1_x>1&&det1_x<25)");

Now our showermax.C file looks like this so far.

void showermax() {
  TCanvas *c1 = new TCanvas("c1","c1",800,600);
  TFile *f = new TFile("showermax.root");
  TTree *t = (TTree*)f->Get("t");
  TH1F *h;
  t->Draw("(det1_qdc_hr - 1293)*1.378 >>h","isGoldenTrack&&!isNoisy&&(det1_y>8&&det1_y<18)&&(det1_x>1&&det1_x<25)");
}

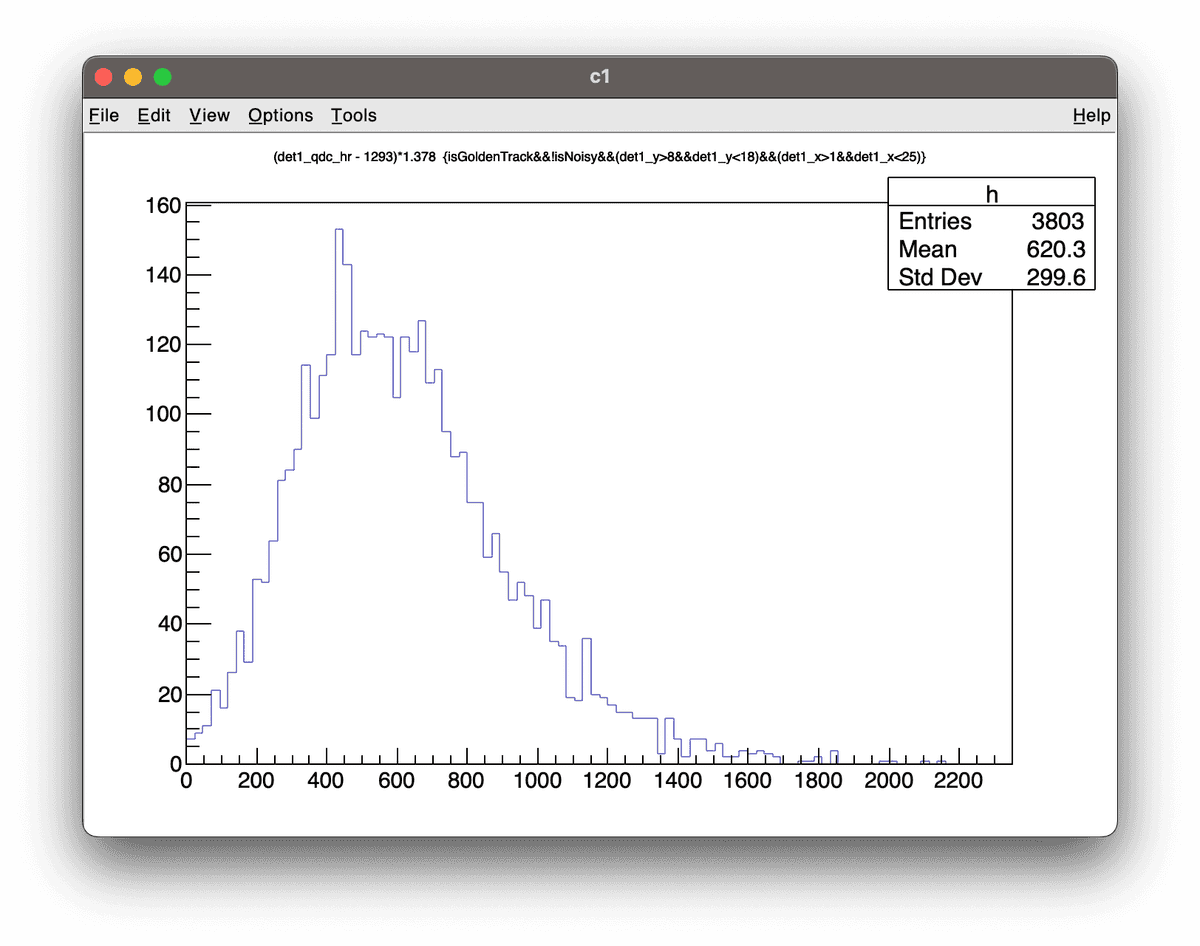

And our results look like this.

Looking good.

Let's see if we can find the number of photoelectrons in this distribution. If you look at the right side of the histogram you will notice that there is a 'tail' there. For this analysis we are not intrested in that tail.

What we want to do is fit the main distribution.

Fitting the Single PE peak

We will first create a gaussin fit function and then put bounderies on it, so we can avoid including any of the tail. We will do this by creating a new function in the macro. We will name it f1.

TF1 *f1 = new TF1("f1","gaus",200,1000);

Here we set the bounds on the function to be between 200 and 800. This is the range we want to fit. We will then add this function to the histogram.

h->Fit("f1","R");

h = (TH1F*)gDirectory->Get("h");

By adding the second parameter "R" we are telling root to fit the function in the range we set. Run the macro again and you should see something like this.

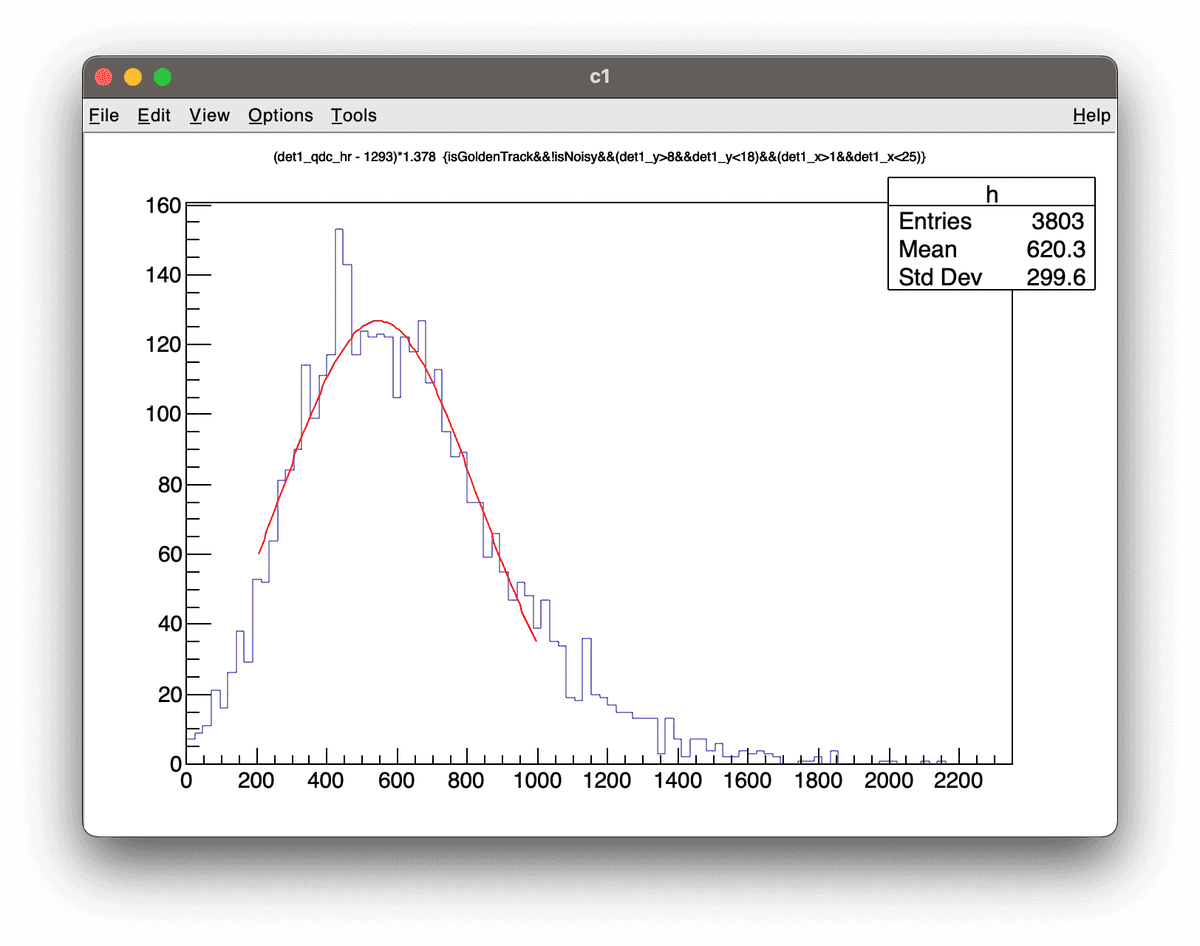

Awesome! This is close to the center of our distribution. The fit gives us a mean ~ 547 PEs.

This essentially completes the analysis. But, this isn't very presentable. So, we will make a few cahnges to the way or results are displayed.

Setting Presentation settings

We will start by changing the title of the histogram. We will also change the axis labels and the color of the histogram. Let's add this to our macro:

h->SetTitle("ShowerMax");
h->GetXaxis()->SetTitle("PEs");
h->GetYaxis()->SetTitle("Counts");
h->SetLineColor(kBlack);

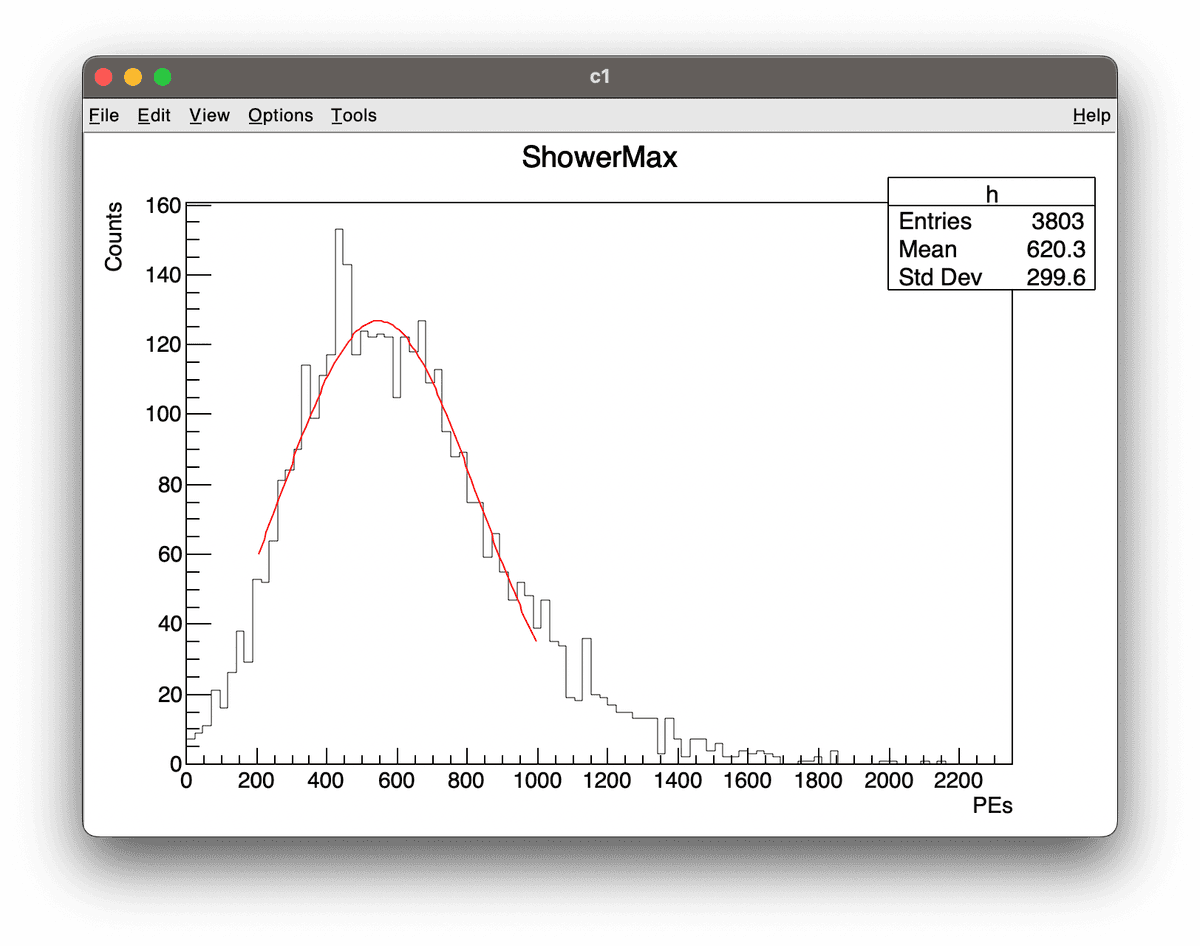

Much better.

Now let's add our fit results to statistics box. At the top of the macro we will add this line.

gStyle->SetOptFit(1111);

So our file now look like this

    void showermax() {

      gStyle->SetOptFit(1111);

      TCanvas *c1 = new TCanvas("c1","c1",800,600);

      TFile *f = new TFile("showermax.root");
      TTree *t = (TTree*)f->Get("t");
      TH1F *h;

      t->Draw("(det1_qdc_hr - 1293)*1.378 >>h","isGoldenTrack&&!isNoisy&&(det1_y>8&&det1_y<18)&&(det1_x>1&&det1_x<25)");

      h = (TH1F*)gDirectory->Get("h");
      TF1 *f1 = new TF1("f1","gaus",200,1000);

      h->Fit("f1","R");
      h->SetTitle("ShowerMax");
      h->GetXaxis()->SetTitle("PEs");
      h->GetYaxis()->SetTitle("Counts");
      h->SetLineColor(kBlack);

    }

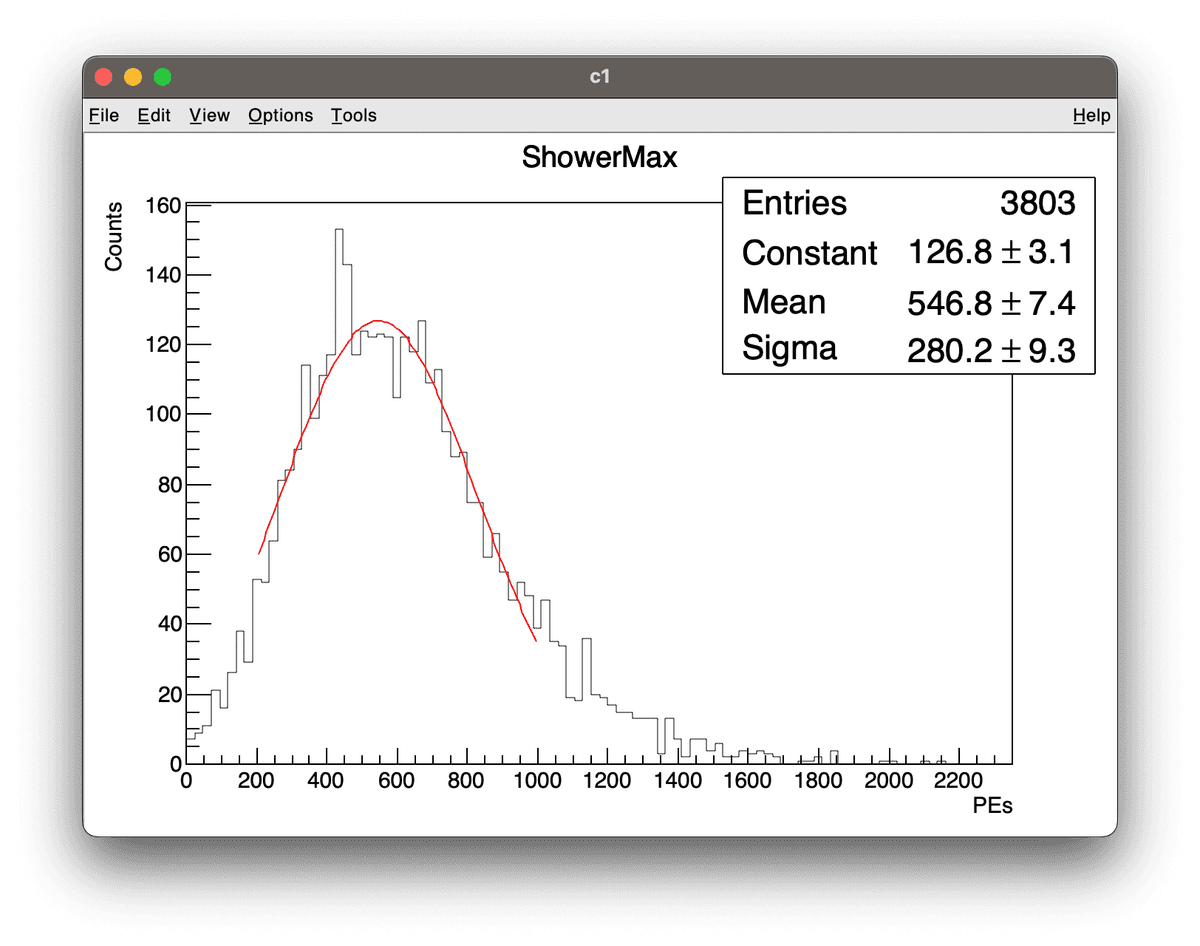

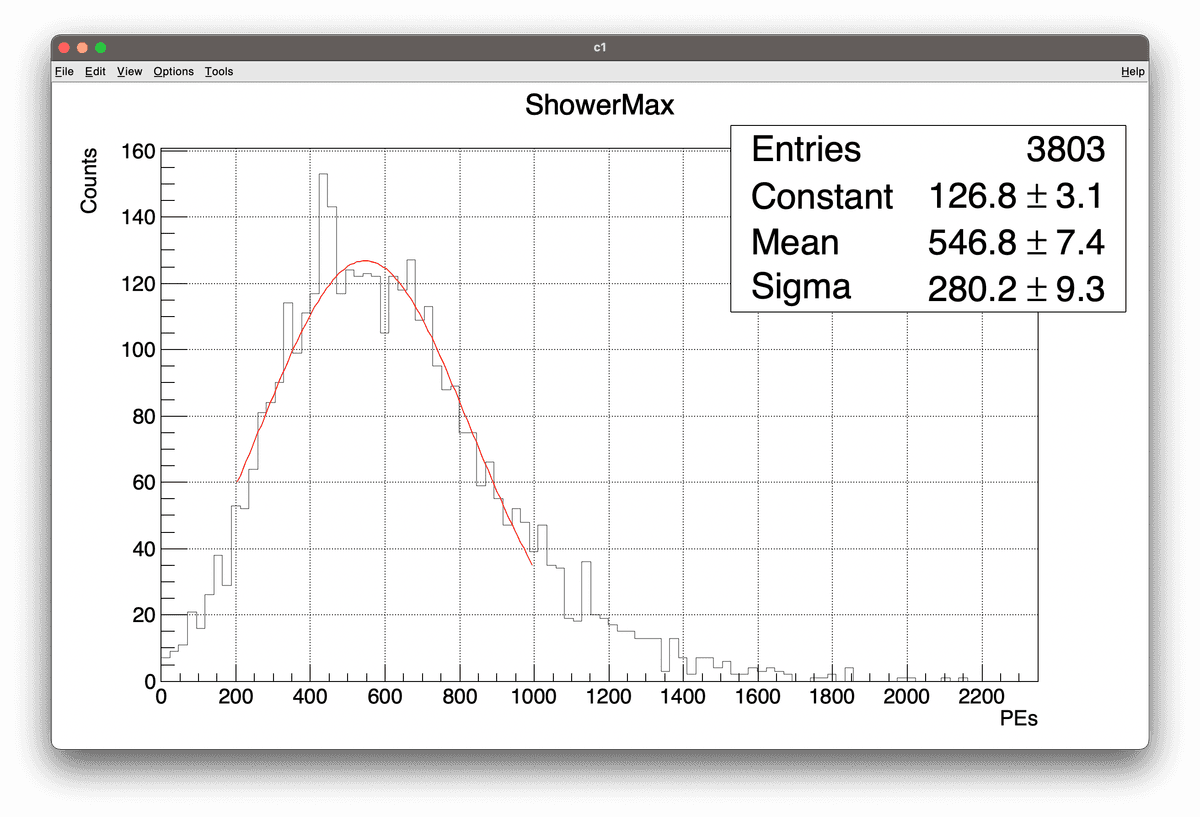

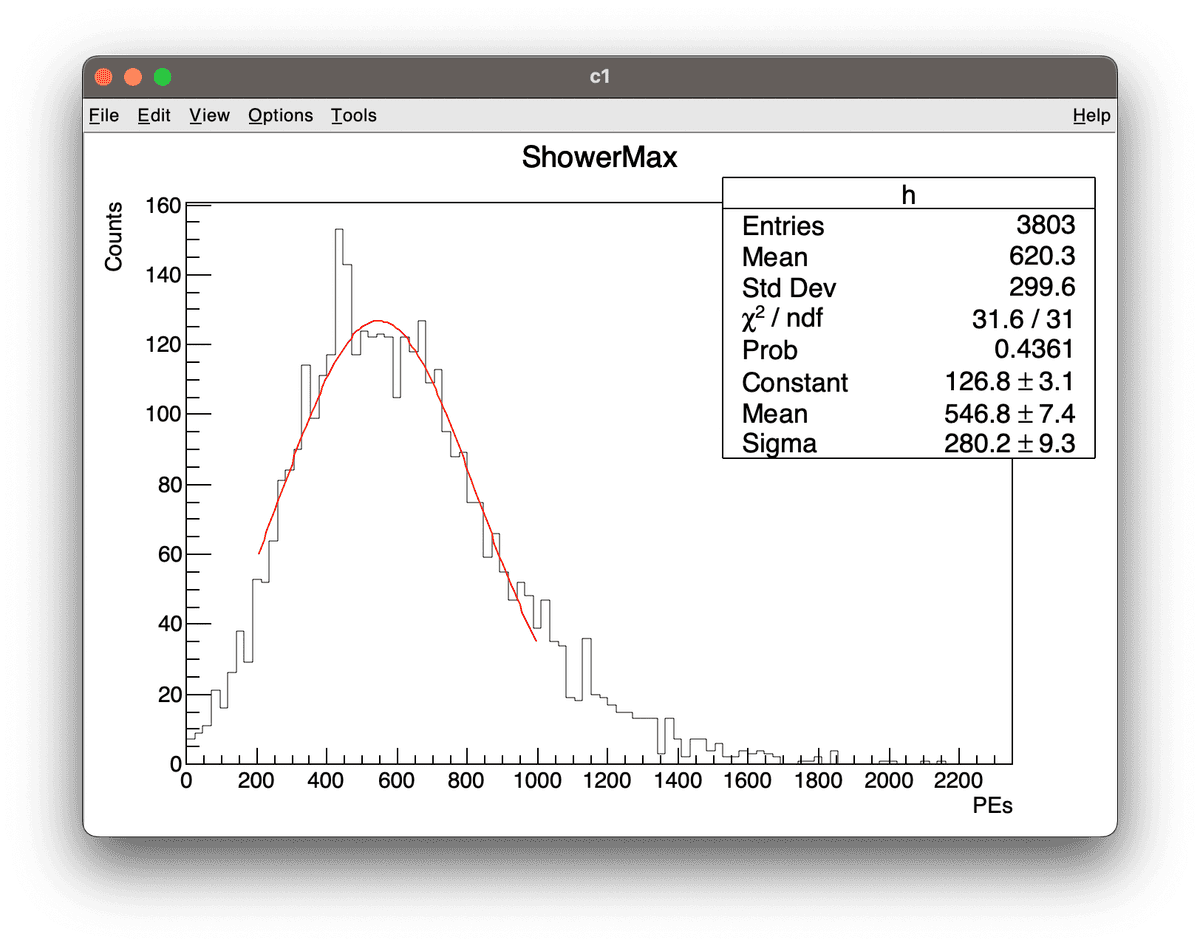

And our results look like this.

Great! Now we have a nice looking plot. But we don't need the stats from the histogram, just our fit results. So, we will remove the histogram stats. We will do this by adding this line to the top of the macro.

gstyle->SetOptStat("e");

This will remove the histogram stats except for the number of entries.

Let's add a grid to our to make it easier to read.

c1->SetGrid();

Finally we can save our plot as a pdf file. We will do this by adding this line to the end of the macro.

c1->Print("showermax.pdf");

Our file now:

    void showermax() {

      gStyle->SetOptFit(1111);
      gStyle->SetOptStat("e");

      TCanvas *c1 = new TCanvas("c1","c1",800,600);
      c1->SetGrid();

      TFile *f = new TFile("showermax.root");
      TTree *t = (TTree*)f->Get("t");
      TH1F *h;

      t->Draw("(det1_qdc_hr - 1293)*1.378 >>h","isGoldenTrack&&!isNoisy&&(det1_y>8&&det1_y<18)&&(det1_x>1&&det1_x<25)");

      h = (TH1F*)gDirectory->Get("h");
      TF1 *f1 = new TF1("f1","gaus",200,1000);

      h->Fit("f1","R");
      h->SetTitle("ShowerMax");
      h->GetXaxis()->SetTitle("PEs");
      h->GetYaxis()->SetTitle("Counts");
      h->SetLineColor(kBlack);

      c1->Print("showermax.pdf");

    }

And there you have it. A nice looking plot with the fit results. When you run this macro it will save a pdf file in the same directory as the macro.

c1->SetLogy();

c1->Print("showermax.png");

Wrap Up

In this tutorial, you learned how to use ROOT to plot and analyze data from a ROOT file that was used in an actual experiment. We covered basic plotting techniques, such as making and filling histograms making changes to the histogram values and fitting data. We also learned how to use macros to automate our analysis and make our work more reproducible. Finally, we added some presentation settings to our plot, such as changing the title, axis labels, and line color.

With these skills, you can now apply ROOT to your own research projects and experiments. Remember to always document your code and analysis steps, and to use macros to make your work more efficient and reproducible. Happy ROOTing!

The best place to move on from here is to go through the root primer (opens in a new tab). This goes over more of the basics of root. After that reading through the manual (opens in a new tab) as needed is a good idea. As well as looking up questions to problems in the root forum (opens in a new tab) and checking out examples in the tutorials (opens in a new tab). And of course chatGPT is always a good place to ask questions and develop code much more quickly than you can on your own.
